Instrument model/company: Avio 200ICP-OES, PerkinElmer company

Main parameters:

1.      Equipped with a double optical splitting system of middle step grating: grating area 8x160 mm², line density 79/mm, blaze angle 63.4°

2.      High UV sensitivity CaF₂ prism unit

3.      Instrument resolution 0.003 nm

4.      Detector: CCD

Application:

Due to the different energy level structure of the element atoms to be measured, the characteristics of the emission lines are different, according to which the sample can be qualitatively analyzed; and according to different concentration of the element atoms tested, the emission intensity is different, so the quantitative determination of the elements can be achieved. ICP emission spectrometry is a method to analyze the element to be measured according to the characteristic spectral line emitted when the atom of the element to be measured in the excited state returns to the ground state. ICP emission spectrometer is mainly used for qualitative and quantitative analysis of inorganic elements

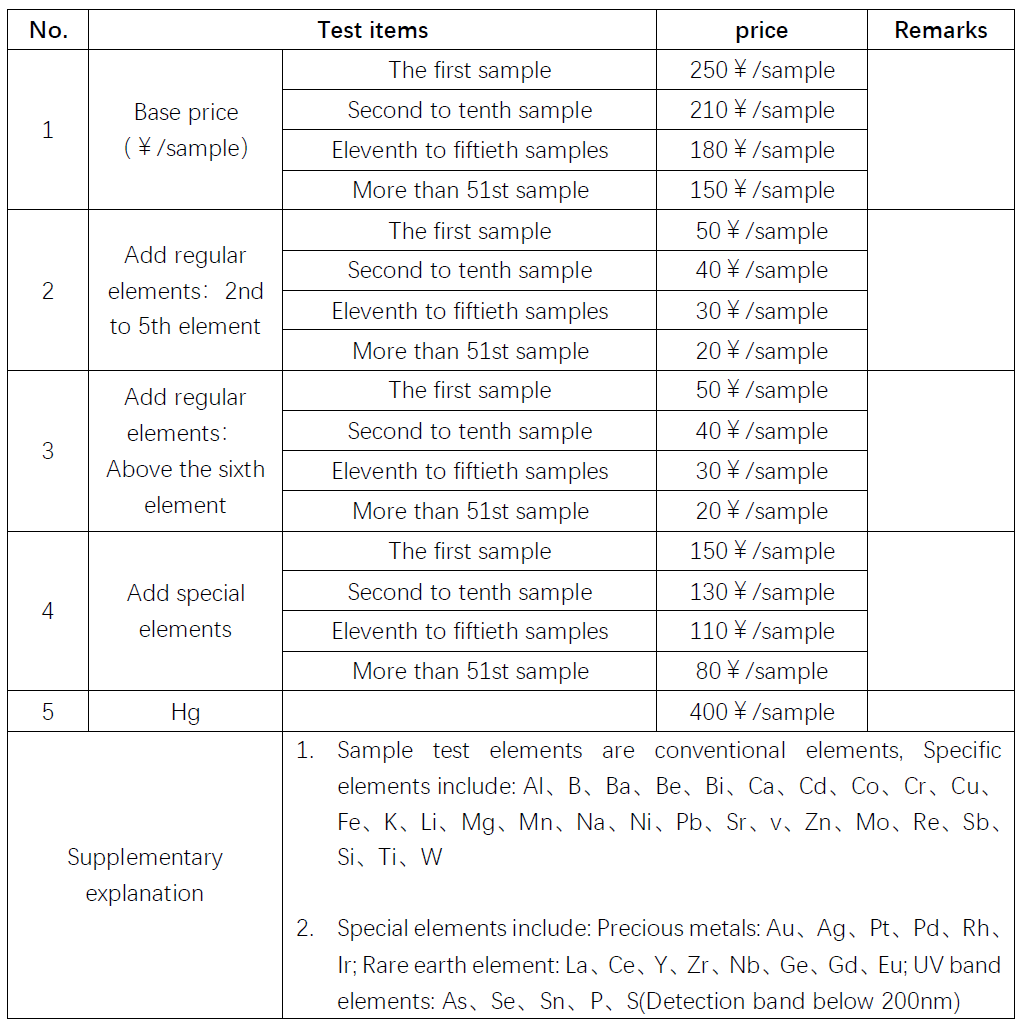

Test items:

Notes:

1.For parallel test, the charges will be accumulated according to the number of parallel testing samples.

2. For the need of special test, the price is set based on the analytical condition

ATTN: Zhang Qi

Tel: 021-37896103

E-mail: test1@shicti.com
